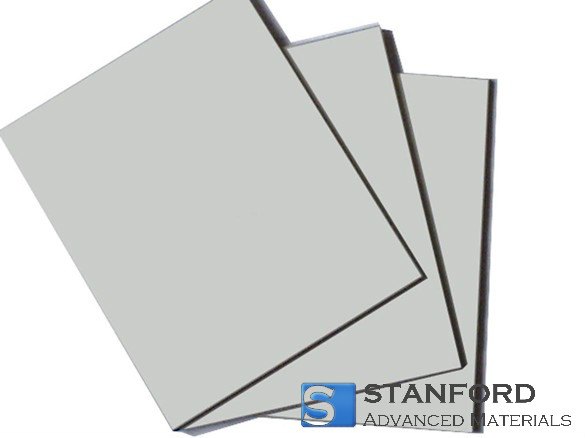

Tungsten–Rhenium Alloy Plate Description
As refractory metals, rhenium and tungsten both exhibit good ductility and strength. The addition of rhenium to tungsten increases the ductility, specific resistivity and vibration endurance of the W-Re alloy. These values fall within the range of superplastic materials. The W-Re alloy is recommended for elements in electrical vacuum devices such as cathodes, heating elements and grids for radio tubes. It is also applicable for thermocouples and electrical contacts.

Tungsten–Rhenium Alloy Plate Specifications
Product
|
Composition
|
Specifications
|
Bar of tungsten–rhenium alloy
|
WRe3%, WRe5%, WRe25%, WRe26%
|
φ: 1–17 mm
|
Wire of tungsten–rhenium alloy
|
WRe3%, WRe5%, WRe25%, WRe26%
|
φ: 0.1 mm, 0.2 mm, 0.25 mm, 0.3 mm, 0.35 mm, 0.5 mm, 1.0 mm
|
Sheets of tungsten–rhenium alloy
|
WRe3%, WRe5%, WRe25%, WRe26%
|
Length: 300 mm
|
Width: 300 mm
|
Thickness: 1–20 mm
|
Tungsten–rhenium alloy thermocouple
|
WRe3/25, WRe5/26
|
φ: 0.1 mm, 0.2 mm, 0.25 mm, 0.3 mm, 0.35 mm, 0.5 mm
|
Sheets of tungsten–rhenium alloy
|
WRe3%, WRe5%, WRe25%, WRe26%
|
Length: 10–350 mm
|
Width: up to 600 mm
|
Thickness: minimum 0.2 mm
|
Custom dimensions and specifications are also available.
Electrical Characteristics
Electrical resistivity (µΩ·cm): 9.5
Mechanical Characteristics
Elongation at break (%): < 15.0
Tensile strength (MPa): 1 180.00
Thermal Characteristics
Coefficient of thermal expansion (x10⁻⁶ K⁻¹): 2.900 @ 20–100°C
Applications for Tungsten–Rhenium Alloy Sheets
Microwave communication
- Thermocouple
- Electronics
- Furnaces
- Joining
- Aeronautics and space industry
Tungsten–Rhenium Alloy Plate Packaging
Our tungsten–rhenium alloy plate is marked and externally labelled to enable identification and quality control. Care is taken to prevent damage during storage or transportation.
